Name: Bluetooth 2D Barcode Scanner DI9130-2D with CMOS Technology
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 28.00 USD
Availability: InStock

Rumah Produk Pemindai kode batang nirkabel

Bluetooth 2D Barcode Scanner DI9130-2D with CMOS Technology

Detail produk:

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1

Kontak

Detil Deskripsi produk

Model No.:	DI9130-2D	Tipe antarmuka:	Dongle Bluetooth
Kecepatan pindai:	35CM/detik	Elemen Pindai:	CMOS
Kedalaman bidang:	20-500mm	Mode Pindai:	Manual, Auto Sense
Cetak kontras:	20%	Cahaya Sekitar:	Lingkungan gelap, cahaya alami dalam ruangan
Simbologi:	1D dan 2D	Berat:	70g tanpa kabel
Dimensi:	Panjang 130 mm * Lebar 47,5 mm * Tinggi 24 mm	Antarmuka:	Tipe c
Tinggi drop:	1.5m	Mengangkut:	10h@125rpm
CPU:	32-Bit
Menyoroti:	Bluetooth barcode scanner with CMOS , 2D barcode scanner wireless , DI9130-2D Bluetooth scanner

Bluetooth Portable 1D 2D Laser CMOS QR Barcode Scanner Reader

Product Attributes

Attribute	Value
Model NO.	DI9130-2D
Interface Type	Dongle Bluetooth
Scan Speed	35cm/S
Scan Element Type	CMOS
Depth of Field	20-500mm
Scan Mode	Manual, Auto Sense
Print Contrast Signal	20%
Ambient Light	Dark Environment, Indoor Natural Light
Symbologies	1D and 2D
Weight	70g Without Cable
Dimension	L130mm * W47.5mm * H24mm
Interface	Type C
Drop Height	1.5m
Transport	10h@125rpm
Transport Package	17011040mm
Trademark	DYscan
Origin	China
HS Code	8471900090
Production Capacity	50000

Product Description

The DI9130-2D is a high-performance 2D Bluetooth and wireless 2.4G barcode scanner featuring leading CMOS image recognition technology. It efficiently reads barcodes from paper, goods, screens, and other media. Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory.

Technical Specifications

Scan Type	CMOS
Light Source	White light
CPU	32-bit
Resolution	640*480
Reading precision	≥4mil/0.1mm(PCS90%,CODE 39)
Decoding speed	35CM/S
Depth of field	20-500mm
Scan Mode	Manual, Auto sense
Scan angle	Pitch:±60°, Roll: ±360°, Skew: ±55°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5(Straight 2 of 5), Codabar(NW-7), MSI, GS1 Databar(Omnidirectional, Limited, Expanded), etc. 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, Aztec, etc.

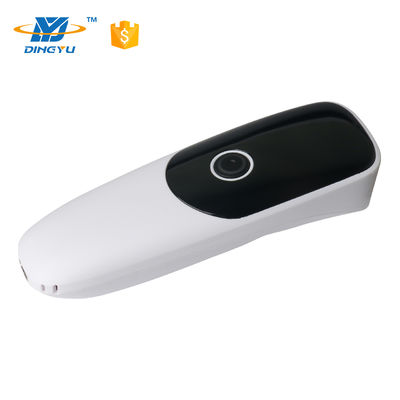

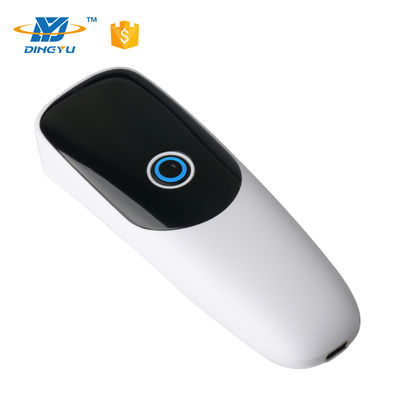

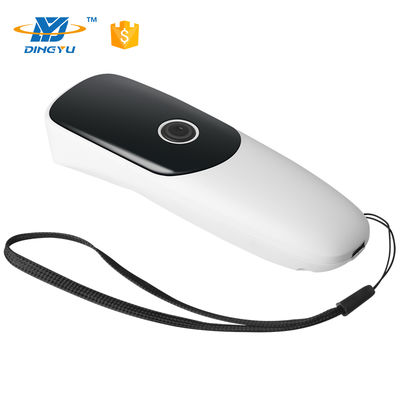

Product Images

Frequently Asked Questions

Q1: How do you ensure the high quality of your barcode scanners?

DYscan: We are a professional manufacturer and developer of barcode scanners with 18 years of field experience. Our quality control includes professional testing machines (engine age test, wire bend machine, switch life test, shock resistance test). All our barcode scanners pass CE, FCC, and ROHS certifications.

Q2: What quality control measures do you implement?

DYscan: We conduct wire bend tests 1 million times, button tests 1 million times, and all devices are tested before shipment.

Q3: What is the warranty period for your barcode scanners?

DYscan: 12 months warranty.

Q4: How do you ensure stable performance?

DYscan: We use flow line production throughout processing. Every product is tested at least 4 times before delivery.

Q5: Do you offer OEM or ODM services?

DYscan: We provide OEM services including custom logos, color boxes, and user manuals. Our technical team supports ODM services.

Q6: What are your company's strengths?

DYscan: As a professional scanner manufacturer, we have specialized departments including R&D (new product development), production (manufacturing and testing), and marketing/sales (customer service and support).

Q7: Do I need to install drivers?

DYscan: No drivers required. Our scanners support plug-and-play functionality with Windows, Mac OS, iOS, Linux, UNIX, and Android systems.
