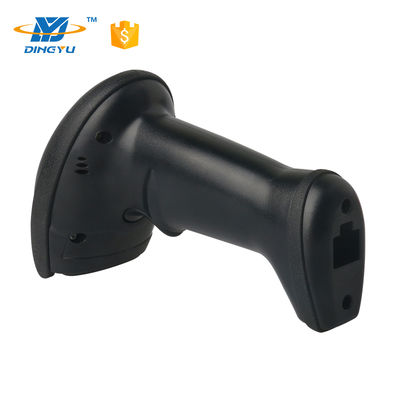

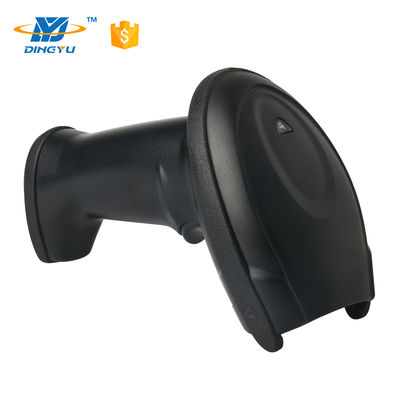

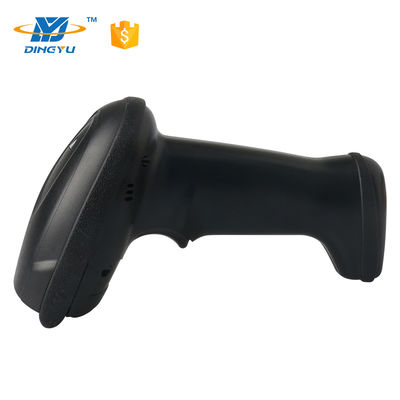

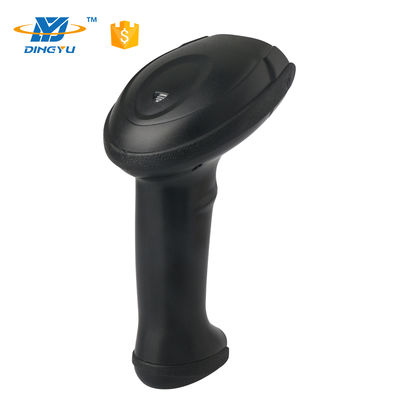

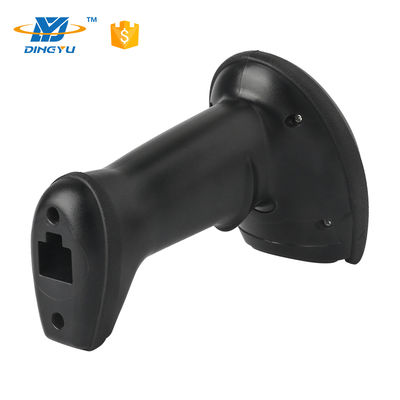

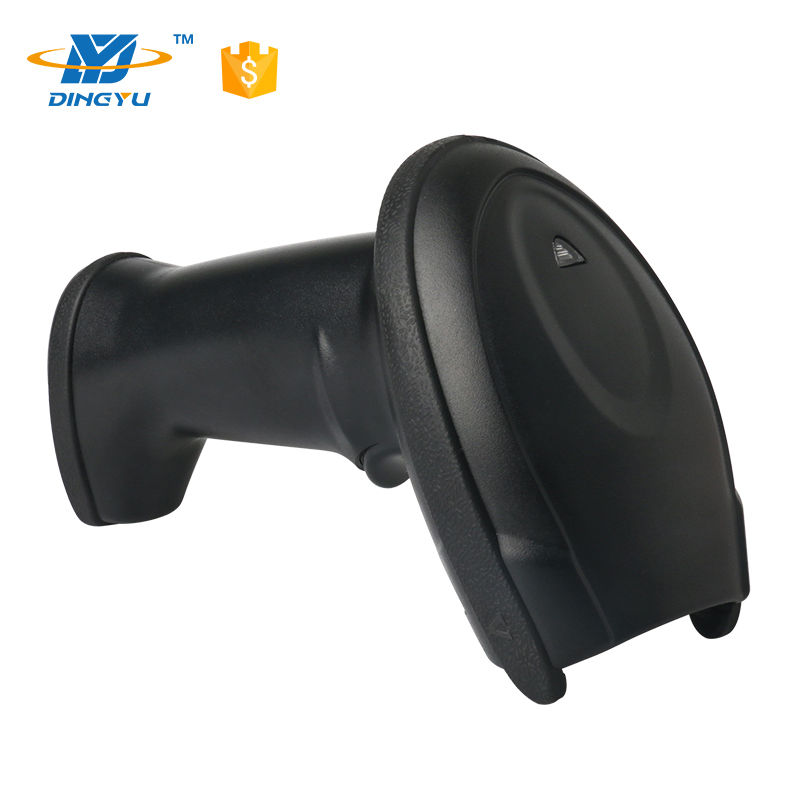

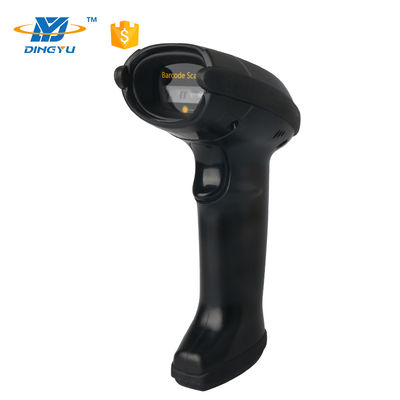

Name: DS5900-1D USB Barcode Scanner 300 Scans/sec 10-600mm Depth
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Rumah Produk 1D Barcode Scanner

DS5900-1D USB Barcode Scanner 300 Scans/sec 10-600mm Depth

Detail produk:

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	10

Kontak

Detil Deskripsi produk

Model no.:	DS5900-1D	Tipe antarmuka:	USB
Kecepatan pindai:	300 pindaian/dtk	Elemen Pindai:	CCD
Resolusi kamera:	640*480	Resolusi Barcode:	Kode 3mil39
Kedalaman bidang:	10-600mm	Cetak kontras:	20%
CPU:	32 bit	Panjang kabel:	1.5m
Berat:	160g	Catu daya:	DC 5V 80MA
Tinggi drop:	1.5m	Ukuran:	L165.5mm * W63.5mm * H92.3mm
Suhu operasi:	-20ºC hingga 55ºC
Menyoroti:	DS5900-1D USB barcode scanner , 1D barcode scanner 300 scans/sec , USB barcode scanner 10-600mm depth

Handheld 1D USB Wired Barcode Scanner

Quick scanning Code39 Reader CCD 1D Wired USB BT Handheld Barcode Scanner

Product Specifications

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading precision	≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed	300times/s
Depth of field	10mm-600mm
Scan Mode	Manual, Continuous, Auto Sense, Flashing
Scan angle	Pitch:±60° Roll: ±30° Skew: ±60° Test Conditions: CODE39,10mil/0.25mm,PCS90%
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Weight	≈160g (without cable)
Dimension	L165.5mm * W63.5mm * H92.3mm
Communication Mode	USB (USB-KBW, USB-COM), RS232
Interface Type	USB, RS232
Power Supply	DC 5V@80mA (work)
Operating temperature	-20ºC to 55ºC
Storage temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp. High Temp.: 60ºC Low Temp.: -20ºC
Transport vibration Test	10H@125RPM
