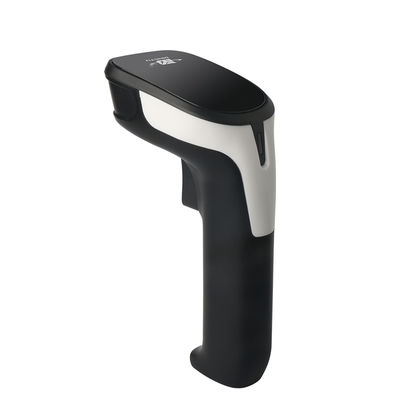

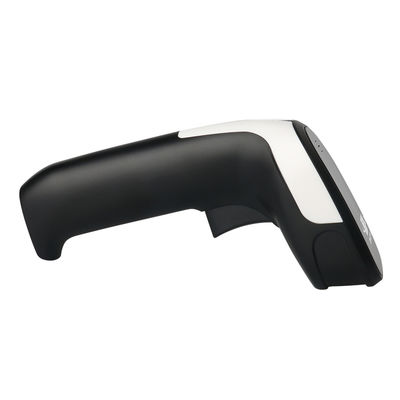

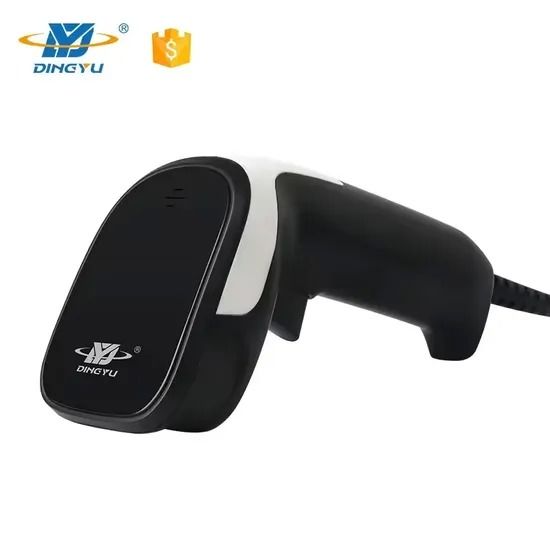

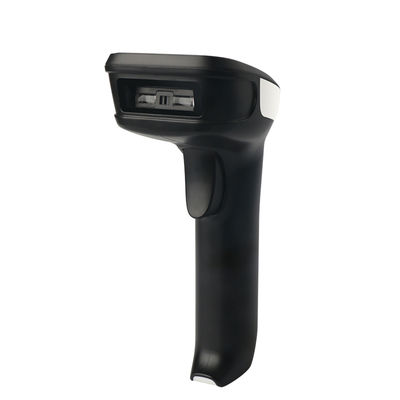

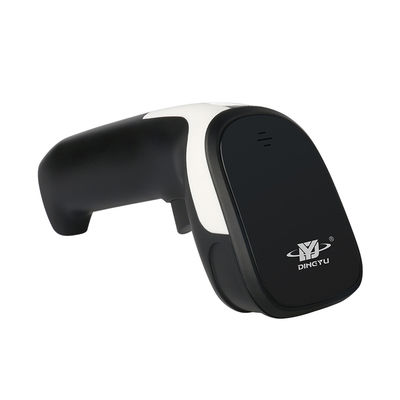

Name: DS5110 1D CCD Barcode Scanner with USB RS232 3mil Resolution
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Rumah Produk 1D Barcode Scanner

DS5110 1D CCD Barcode Scanner with USB RS232 3mil Resolution

Detail produk:

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	10

Kontak

Detil Deskripsi produk

Model no.:	DS5110	Tipe antarmuka:	USB, RS232
Elemen Pindai:	CCD	Resolusi kamera:	640*480
Resolusi Barcode:	Kode 3mil39	Kedalaman bidang:	10-600mm
Mode pemindaian:	Manual, kontinu, pemindaian otomatis, berkedip	Cetak kontras:	20%
CPU:	32 bit	Ukuran:	L161mm * W63mm * H80mm
Berat:	147g	Komunikasi:	USB (USB-KBW, USB-COM), RS232
Suhu operasi:	-20 hingga 50 derajat	Suhu penyimpanan:	-40 hingga 70 derajat
Tinggi drop:	1.5m
Menyoroti:	1D CCD barcode scanner with USB , 1D barcode scanner RS232 interface , DS5110 barcode scanner 3mil resolution

Handheld 1D Wired Scanner Barcode Reader CCD Barcode Scanner with USB RS232

High-Performance 1D Barcode Scanner

The DS5110 is a professional-grade 1D barcode scanner featuring advanced CCD image recognition technology. Designed for reliable performance across various applications, it efficiently reads barcodes from paper, products, screens, and other media surfaces.

Key Applications

Ideal for manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset inventory systems.

Technical Specifications

Parameter	Specification
Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/s
Depth of Field	10mm-600mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing
Scan Angles	Pitch: ±60° \| Roll: ±30° \| Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Physical Dimensions	161mm (L) × 63mm (W) × 80mm (H)
Weight	≈147g (without cable)
Communication Interfaces	USB (USB-KBW, USB-COM), RS232
Power Supply	DC 5V@80mA (operating)
Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 70ºC
Humidity	5% to 95% (non-condensing)
Drop Resistance	1.5m
