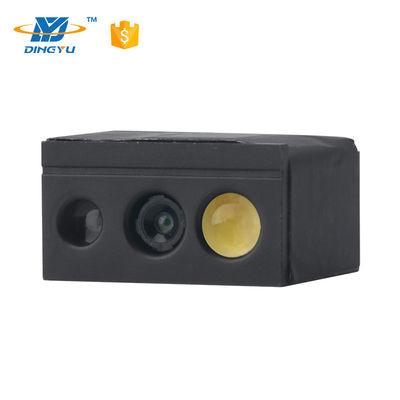

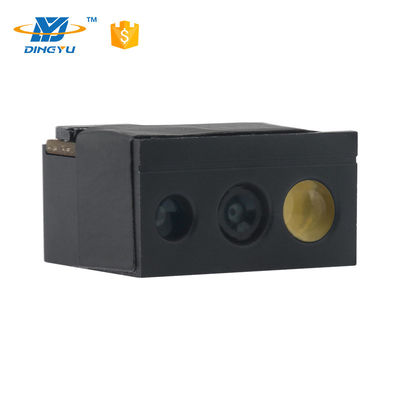

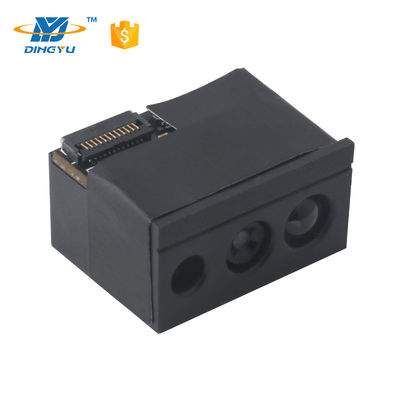

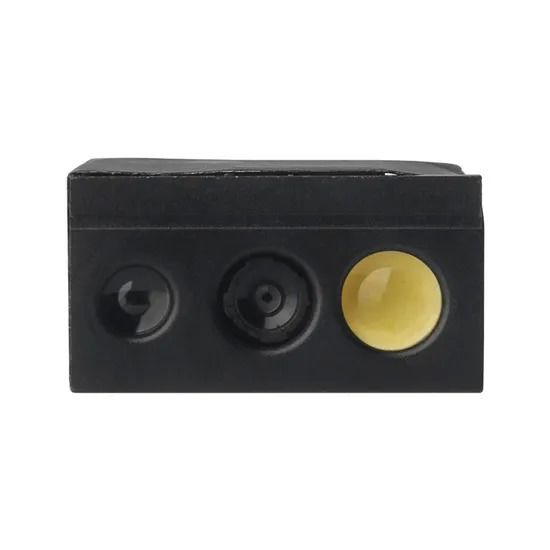

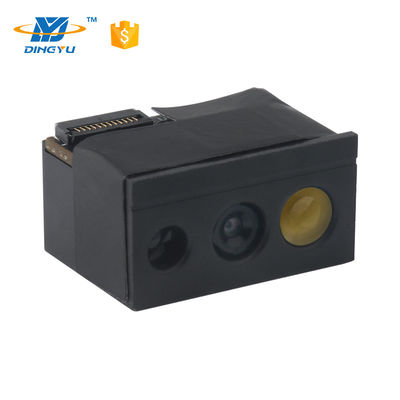

Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function

Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function

  • Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
  • Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
  • Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
  • Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
  • Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
  • Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function
Detail produk:
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: 20
Kontak
Detil Deskripsi produk
Nomor Model.: DE2390 Tipe Antarmuka: USB
Kecepatan pindai: 65cm/detik Elemen Pindai: CMOS
Resolusi: 3mil/0,076mm Sensor gambar: 1280*800
Mode Pindai: Pemindaian otomatis, berkelanjutan Cetak kontras: 20%
Dimensi: Panjang 21,5 mm * Lebar 15,9 mm * Tinggi 11,30 mm Berat: 3.8g
kabel ffc: 5cm Tinggi drop: 1.2m
Kedalaman bidang: 50mm~750mm Sumber Cahaya: LED Putih, LED Merah (525nm)
Masukan Daya: 3.3V, arus siaga: 95mA, arus rata-rata yang diterjemahkan: 200mA
Menyoroti:

1D 2D Barcode Scanner Module

,

OCR Passport Barcode Scanner Module

,

Auto Scan Barcode Scanner Module

Small Embedded 1D/2D Barcode Reader with OCR Functionality
Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 0

The DE2390 is a high-performance embedded 2D barcode module featuring advanced CMOS image recognition technology. With its 1 million pixel global camera, it delivers excellent reading performance for both paper and screen-based barcodes. The module includes OCR functionality for reading ID and passport characters.

Key Features
  • Compact dimensions: 21.5mm × 15.9mm × 11.30mm
  • High-resolution 1280×800 CMOS sensor
  • ARM32-bit processor for fast decoding
  • Supports both 1D and 2D barcode symbologies
  • OCR capability for ID and passport reading
  • Multiple scan modes including trigger and auto-scan
  • Wide operating temperature range (-20°C to 50°C)
Technical Specifications
Parameter Specification
Interface USB, USB-com (requires driver), TTL
Light Source White LED lighting, Red LED aiming (525nm)
Resolution ≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field 50mm-750mm (varies by barcode type)
Reading Angle Roll: ±360°, Pitch: ±60°, Yaw: ±55°
Power Input 3.3V (Standby: 95mA, Decoding: 200mA avg)
Supported Symbologies

1D Barcodes: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, and more

2D Barcodes: QR Code, Data Matrix, PDF417, Aztec, HanXin Code, and more

Environmental Specifications

Operating Temperature: -20°C to 50°C

Storage Temperature: -40°C to 60°C

Humidity: 5% to 95% (non-condensing)

Product Images
Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 1 Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 2 Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 3 Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 4 Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 5
Packaging & Shipping
Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 6
Company Profile
Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 7
Certifications
Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 8
Exhibition
Small Embedded 1D 2D Barcode Scanner Module with OCR Passport and Auto Scan Function 9
