Name: High-Performance 1D 2D Barcode Scan Engine with 3.5g Weight and Compact 22mm L * 14.6mm W * 11.3mm H Dimension
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 5 USD
Availability: InStock

Rumah Produk Barcode Scan Engine

High-Performance 1D 2D Barcode Scan Engine with 3.5g Weight and Compact 22mm L * 14.6mm W * 11.3mm H Dimension

Detail produk:

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	5

Kontak

Detil Deskripsi produk

Nomor Model.:	DE2106	Tipe Antarmuka:	USB
Kecepatan pindai:	25CM/detik	Elemen Pindai:	CMOS
Resolusi:	4mil	Sensor gambar:	640*480
Mode Pindai:	Pemindaian otomatis, berkelanjutan	Cetak kontras:	25%
Komunikasi:	USB(USB-Kbw,USB-COM), Ttl	Berat:	3.5g
Dimensi:	22mm L * 14.6mm L * 11.3mm H	CPU:	32-Bit
Catu Daya:	DC 3.3V, 150mA (Bekerja)	Suhu operasi:	-20ºC hingga 50ºC
Tinggi drop:	1.2m
Menyoroti:	1D 2D Barcode Scan Engine , 3.5g Weight Barcode Scanner Module , 22mm L * 14.6mm W * 11.3mm H Embedded Barcode Scanner

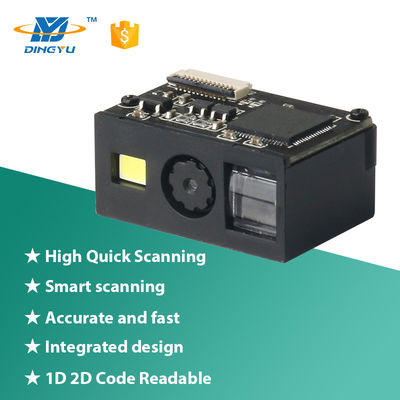

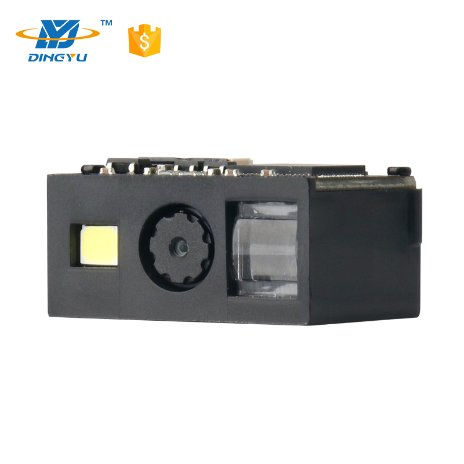

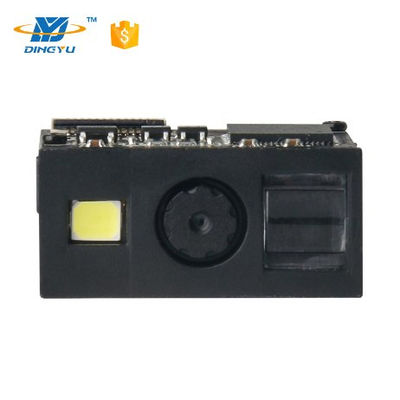

High-Performance 1D/2D Barcode Scanner Embedded CMOS Barcode Scanning Engine Module

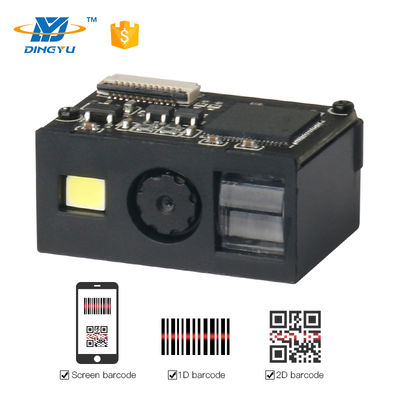

The DE2106 is a compact embedded barcode scanner module featuring advanced CMOS image recognition technology and intelligent image processing system. This versatile module supports both 1D and 2D barcode scanning across various media including paper, products, and digital screens.

With multiple interface options (USB, TTL), this module is designed for easy integration into OEM products such as handheld devices, portable equipment, fixed terminals, and barcode collection systems.

Key Features

Compact size ideal for wireless machines and self-service terminals
Reads all mainstream 1D and 2D barcodes (minimum 4mil resolution)
High-brightness scanning capability for low-light environments
Low power consumption design
Multiple interface options: USB and TTL
Supports multiple operating systems and languages for secondary development

Technical Specifications

Scan Type	CMOS
Light Source	White light
CPU	32-bit
Resolution	640×480
Reading Precision	≥4mil/0.1mm (PCS90%, CODE 39)
Decoding Speed	25CM/S
Scan View	36°×28°
Scan Modes	Manual, Auto sense, Continuous
Scan Angles	Pitch: ±50°, Roll: ±360°, Skew: ±50°
Supported Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA25), Codabar (NW-7) 2D: QR Code, Micro QR Code, Data Matrix, PDF417

Weight	<3.5 g

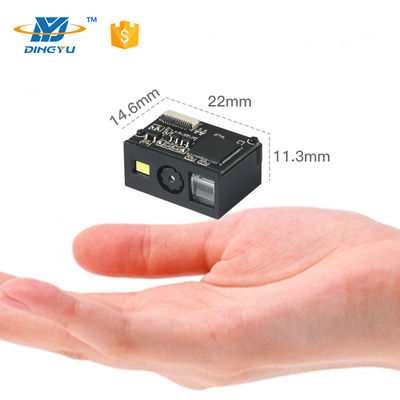

Dimensions	22mm (L) × 14.6mm (W) × 11.3mm (H)
Communication	USB (USB-KBW, USB-COM), TTL
Interface Type	FFC 12PIN Pitch 0.5
Power Supply	DC 3.3V, 150mA (Work)

Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 60ºC
Humidity	5% to 95% (non-condensing)
Drop Height	1.2m
Temperature Test	30 minutes at 60ºC high temp, 30 minutes at -40ºC low temp
Transport Test	10H@125RPM
