Name: DS5110 1D CCD Barcode Scanner USB 3mil Resolution 147g
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 10 USD
Availability: InStock

Rumah Produk 1D Barcode Scanner

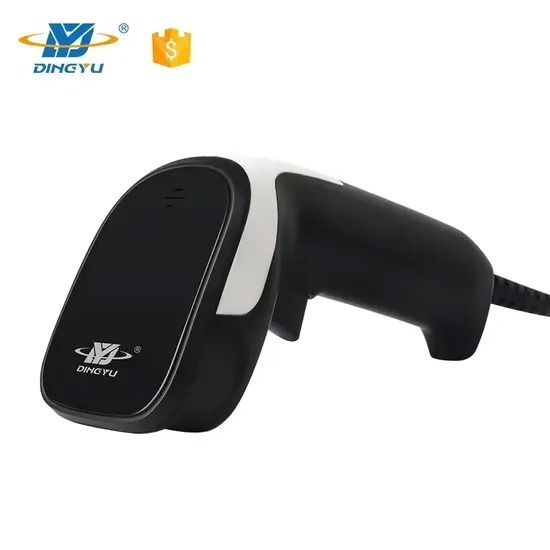

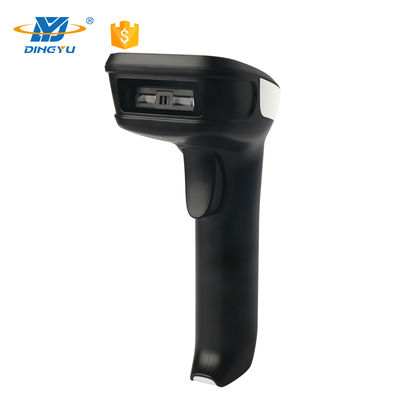

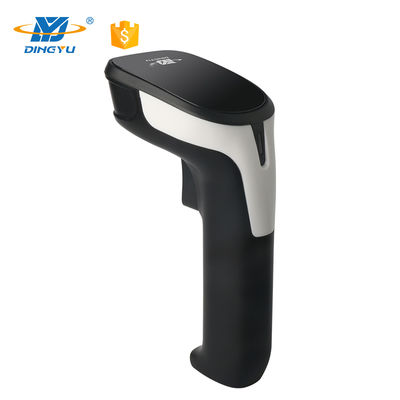

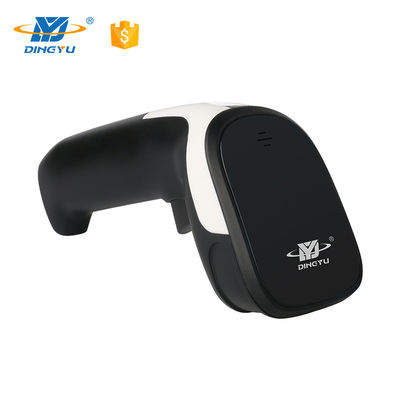

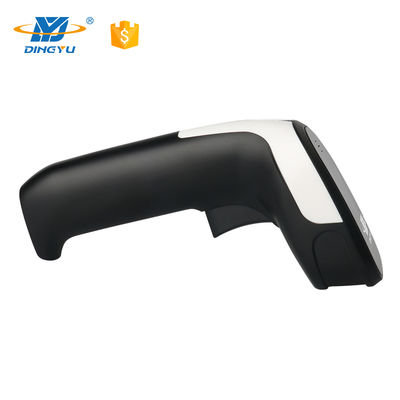

DS5110 1D CCD Barcode Scanner USB 3mil Resolution 147g

Detail produk:

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	10

Kontak

Detil Deskripsi produk

Model no.:	DS5110	Tipe antarmuka:	USB, RS232
Elemen Pindai:	CCD	Resolusi kamera:	640*480
Resolusi Barcode:	Kode 3mil39	Kedalaman bidang:	10-600mm
Mode pemindaian:	Manual, kontinu, pemindaian otomatis, berkedip	CPU:	32 bit
Panjang kabel:	1.5m	Berat:	147g
Catu daya:	DC 5V 80MA	Suhu operasi:	-20 Sampai 50°C
Suhu penyimpanan:	-40 Hingga 70°C	Ukuran:	L161mm * W63mm * H80mm
Kecepatan dekode:	300 kali/detik
Menyoroti:	1D CCD barcode scanner USB , lightweight barcode scanner 147g , high resolution barcode scanner 3mil

1D CCD Barcode Code39 Wired Handheld POS Terminal Barcode Scanner

The DS5110 is a high-performance 1D barcode scanner featuring advanced CCD image recognition technology. Designed for professional use, it efficiently reads barcodes from various surfaces including paper, products, and digital screens.

Ideal for multiple industries including manufacturing, warehousing, logistics, healthcare, retail chains, mobile payments, express delivery, inventory management, food traceability, and asset management.

Technical Specifications

Parameter	Specification
Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading Precision	≥3mil/0.076mm (PCS90%, Code 39)
Decoding Speed	300 times/second
Depth of Field	10mm-600mm
Scan Modes	Manual, Continuous, Auto Sense, Flashing
Scan Angles	Pitch: ±60° \| Roll: ±30° \| Skew: ±60°
Supported Symbologies	UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128, GS1-128, ISBT 128, Code 39, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5 (IATA), Codabar (NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Physical Dimensions	161mm (L) × 63mm (W) × 80mm (H)
Weight	≈147g (without cable)
Communication Interfaces	USB (USB-KBW, USB-COM), RS232
Power Supply	DC 5V@80mA (operating)
Operating Temperature	-20ºC to 50ºC
Storage Temperature	-40ºC to 70ºC
Humidity Range	5% to 95% (non-condensing)
Drop Resistance	1.5 meters
