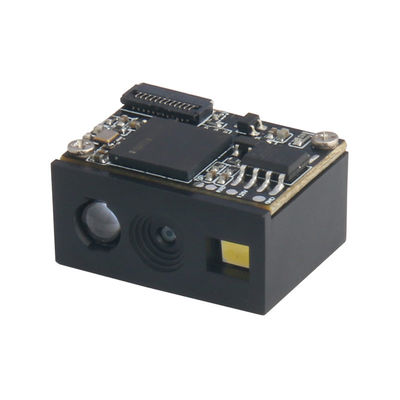

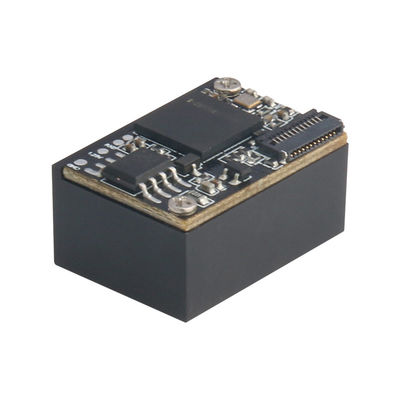

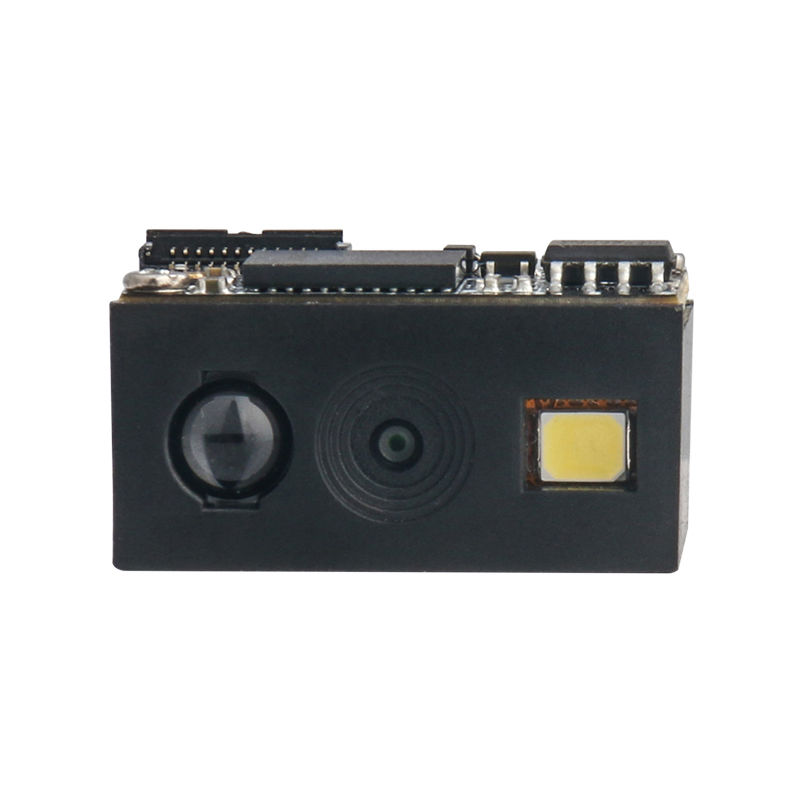

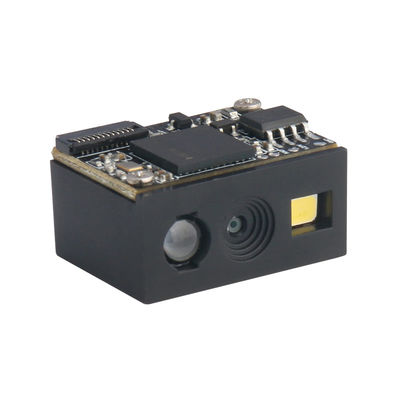

Name: High-Performance 2D Barcode Scanner Module with 3mil/0.076mm Resolution and 640*480 Image Sensor
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 15 USD
Availability: InStock

Rumah Produk Barcode Scan Engine

High-Performance 2D Barcode Scanner Module with 3mil/0.076mm Resolution and 640*480 Image Sensor

Detail produk:

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	15

Kontak

Detil Deskripsi produk

Nomor Model.:	DE2290D	Tipe Antarmuka:	USB
Kecepatan pindai:	65cm/detik	Elemen Pindai:	CMOS
Resolusi:	3mil/0,076mm	Sensor gambar:	640*480
Mode Pindai:	Pemindaian otomatis, berkelanjutan	Cetak kontras:	20%
Berat:	3.5g	Catu Daya:	DC 3.3V, 200mA Bekerja
Ukuran:	21,35 mm P * 15,50 mm L * 11,40 mm T	kabel ffc:	5cm
Tinggi drop:	1.2m	Suhu Operasional:	-20ºC hingga 50ºC
Suhu Penyimpanan:	-40ºC hingga 60ºC
Menyoroti:	3mil/0.076mm Resolution Barcode Scanner Module , 640*480 Image Sensor Barcode Scanner Module , High-Performance 2D Barcode Scanner Module

2D Embedded QR Code Reader Mini Barcode Scanner Module

The DE2290D is a high-performance 300,000 global pixel embedded 2D image module featuring advanced CMOS image recognition technology and intelligent image recognition system.

With excellent reading performance, it easily scans barcodes on various media including paper, merchandise, and digital screens. Its compact integrated design allows for easy installation in a wide range of equipment.

Ideal for self-service machines, price checking systems, lockers, and other automated applications.

Technical Specifications

Communication	USB (USB-KBW, USB-COM, HID-POS), TTL
Scan Type	CMOS, Global shutter
Resolution	300,000 pixel, 640×480
Reading Precision	≥3mil/0.076mm (PCS90%, CODE 39)
Depth of Field	30mm~550mm (varies by barcode type)
Decoding Speed	65CM/S
Scan Modes	Manual, Continuous, Auto Sense, Command control
Prompt Method	LED indicator light, buzzer (external circuit)
Field of View	41° × 31°
Scan Angle	Roll: ±360°, Pitch: ±60°, Skew: ±55°
Supported Symbologies	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 128, GS1-128, Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5, Codabar, MSI, GS1 Databar, China Post, and more 2D: QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF 417, MaxiCode, Aztec, HanXin Code, Japan post, Postnet

Physical Specifications

Weight	Approximately 3.5g
Dimensions	21.35mm L × 15.50mm W × 11.40mm H
FPC Cable Length	5CM (FPC single-sided cable)
Interface Type	FPC 12PIN Pitch 0.5
Power Supply	DC 3.3V
Current	200mA (Average Work), 95mA (Standby), 38mA (Sleep)
