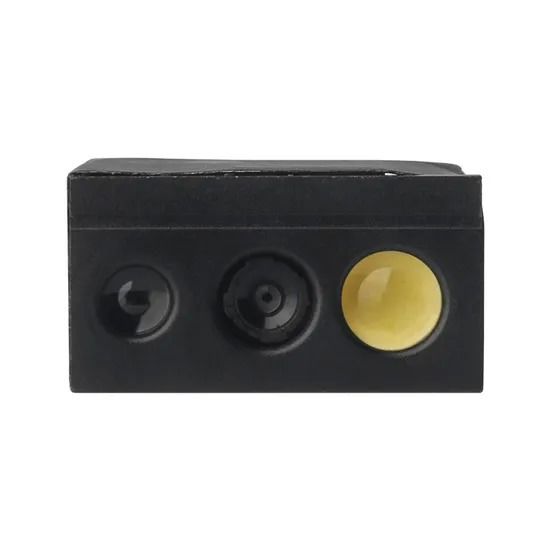

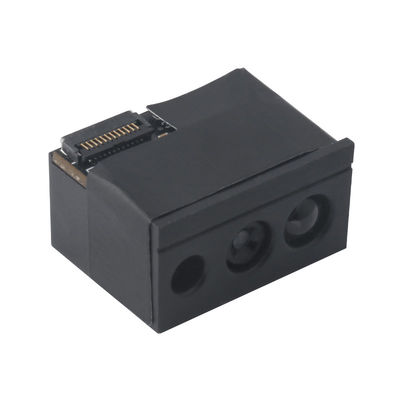

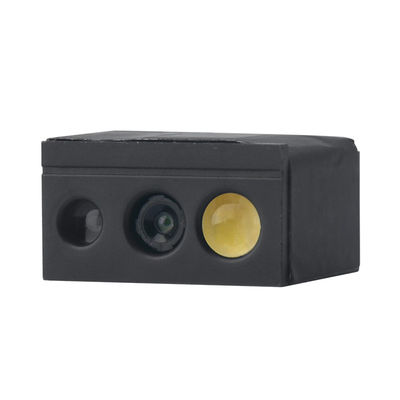

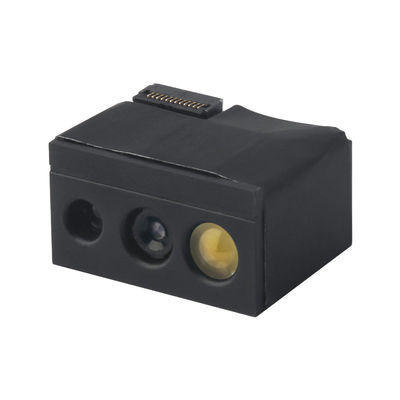

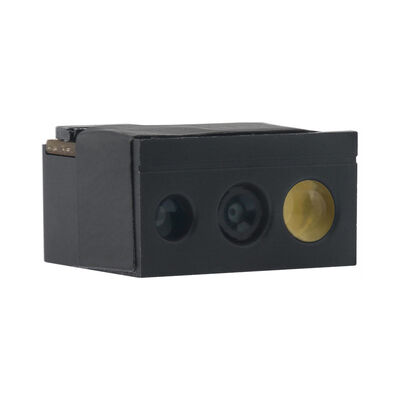

Name: Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height
Brand: Shenzhen DYscan Technology Co., Ltd
Price: 20 USD
Availability: InStock

Rumah Produk Barcode Scan Engine

Small Embedded 2D Barcode Scanner with 1280*800 Image Sensor 50mm~750mm Depth of Field and 1.2m Drop Height

Detail produk:

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1
Harga:	20

Kontak

Detil Deskripsi produk

Nomor Model.:	DE2390	Tipe Antarmuka:	USB
Kecepatan pindai:	65cm/detik	Elemen Pindai:	CMOS
Resolusi:	3mil/0,076mm	Sensor gambar:	1280*800
Mode Pindai:	Manual, Induksi, Berkelanjutan, Instruksi	Cetak kontras:	20%
Sensor:	CMOS, Eksposur Global	Piksel:	1.000.000
Kedalaman bidang:	50mm~750mm	kabel ffc:	5cm
Tinggi drop:	1.2m	Ukuran:	Panjang 21,5 mm * Lebar 15,9 mm * Tinggi 11,30 mm
Masukan Daya:	3.3v
Menyoroti:	1280*800 Image Sensor Barcode Scanner , 50mm~750mm Depth of Field Barcode Scan Engine , 1.2m Drop Height Embedded Barcode Reader

Small Embedded 2D Barcode Reader CMOS OCR Passport Barcode Scanner

The DE2390 is a high-performance embedded 2D barcode module featuring advanced CMOS image recognition technology. This compact scanner combines a 1 million pixel global camera with excellent reading performance, capable of decoding barcodes from both paper and digital displays. The module also includes OCR functionality for reading ID and passport characters.

Key Features:

High-resolution 1280×800 CMOS sensor
ARM32-bit processor for fast decoding
OCR capability for passport and ID reading
Wide reading range: 50mm to 750mm
Multiple scan modes including trigger, auto, and continuous
Supports extensive 1D and 2D barcode symbologies
Robust construction for industrial environments

Technical Specifications:

Parameter	Specification
Dimensions	21.5mm (L) × 15.9mm (W) × 11.30mm (H)
Interfaces	USB, USB-com (requires driver), TTL
Light Source	White LED lighting, Red LED aiming (525nm wavelength)
Resolution	≥3mil/0.076mm (PCS90%, CODE 39)
Reading Angle	Roll: ±360°, Pitch: ±60°, Yaw: ±55°
Field of View	40° horizontal × 27° vertical
Power Requirements	3.3V (95mA standby, 200mA average decoding current)
Operating Temperature	-20°C to 50°C
Supported Symbologies	Includes UPC, EAN, Code 128, QR Code, Data Matrix, PDF417, Aztec, and many more
